CSB650

Cast Bronze Bushing Bearing with Graphite Plugs

Features

  1. May work without oil for long periods
  2. Extremely high load capacity, good anti-wear and lower friction
  3. Particularly appropriate for low speed and high load
  4. Suitable for reciprocating, oscillation or intermittent motion where oil film is hard to be formed
  5. Good chemical resistant and anti-corrosion characteristics
  6. Can be used in wide range of temperature from -40℃-+300℃

Structure

CSB650 material is made of strong cast bronze based metal with special solid lubricants embedded. The base metal withstands high load and the solid lubricants provide self-lubrication. The bearing bushing shows excellent performance without pre-lubrication under conditions of extreme high/low temperature with low speed. This material provides a maintenance-free bearing solution, particularly for high load, intermittent of oscillating motion.

For more information on our sliding bearing bushing materials and applications download our catalogue

“CLICK-HERE to DOWNLOAD CATALOGUE”

You can also contact our global sales team by sending a message online through our website

“CLICK-HERE to SEND A MESSAGE”



Tech. Data

Raised Image

Typical Applications

This kind of bearing bushing can be applied under dry, high temperature, high pressure, corrosive, water or other chemical environments when no oil can be introduced. It is widely used in automotive products line, water engineering, dam gate, plastic industries, successive casting machines, steel rollers in metallurgy industry, mineral machines, ships, turbo generators, hydraulic turbines and injection molding machines...See more about bi-metal bushing / sliding bearing applications "CLICK HERE"

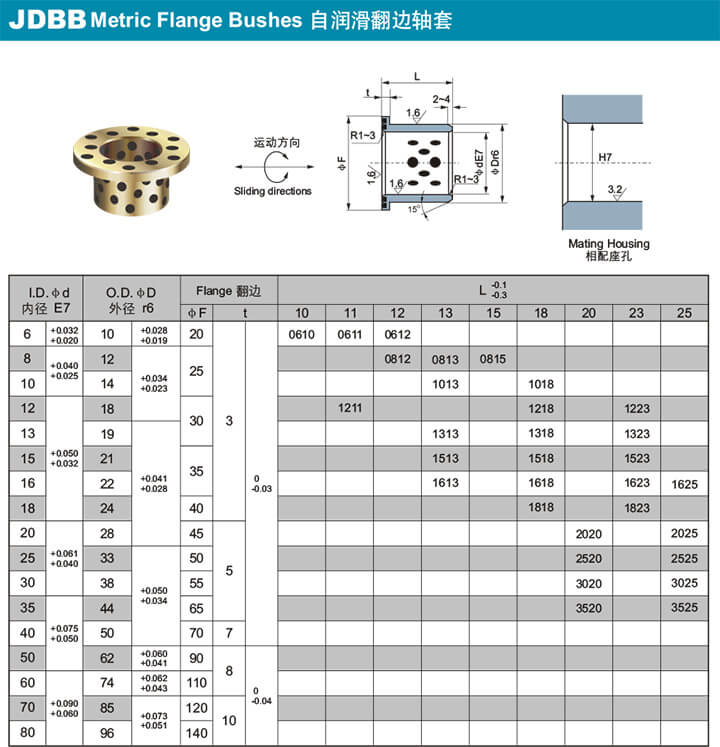

Size
