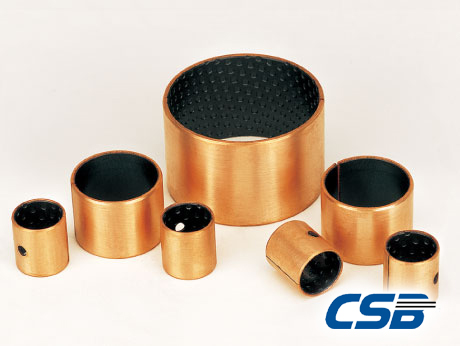

CSB-80

Bi-metal Steel Backed Bronze with PEEK/PTFE Bearing Bushing

Features

  1. CSB-80 provides maintenance-free operation
  2. Operate satisfectorily without lubrication under light duty and low speed
  3. CSB-80 has a high PV capability under high temperature
  4. Temperature allowance is from -150℃-+250℃
  5. Good chemical resistance
  6. High static and dynamic load capacity
  7. No water absorption
  8. Suitable for rotating , oscillating , reciprocating and sliding movement .

For more information on our sliding bearing bushing materials and applications download our catalogue

“CLICK-HERE to DOWNLOAD CATALOGUE”

You can also contact our global sales team by sending a message online through our website

“CLICK-HERE to SEND A MESSAGE”

Structure

1.PEEK/PTFE 0.30~0.50mm. It has high wear resistance and low friction even only minute of lubricant are supplied. The bearing surface carries a pattern of circular indents which will be filled with grease on assembly of the bearing.

2.Bronze layer 0.20~0.35mm. A special composition of powdered copper is thermally fused to the steel backing. This contact layer acts as an anchor for the PTFE layer and conducts the thermal build up away from the bearing surfaces.

3.Steel backing.Setting the foundation of the bushings, the steel back provides exceptional stability, load carrying and heat dissipation characteristics.

Raised Image

Tech. Data

Raised Image

Typical Applications

CSB-80 bearing bushing application covers gear pump , ABS system , piston pump , gear motor , machine tools , agricultural machinery and so on . The materials is recommended with initial pre-lubrication at assembly. See more about bi-metal bushing / sliding bearing applications "CLICK HERE"

Size

For sizing details download our catalogue “CLICK HERE” or Contact us by sending a message “CLICK HERE”
